Description

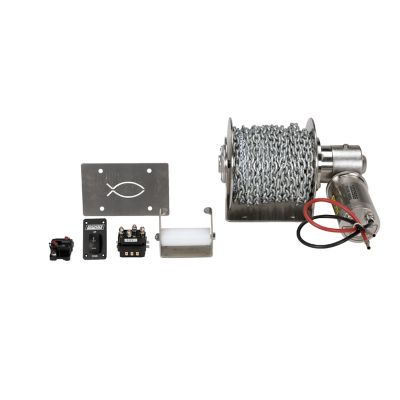

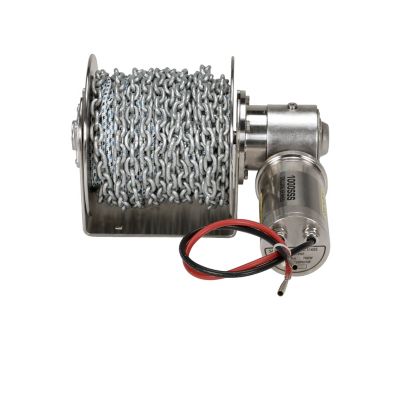

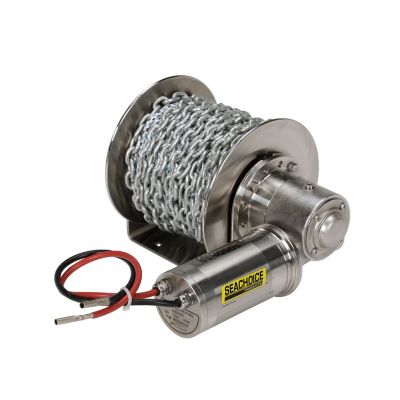

Kit Includes: Motor, Gearbox & Drum; Rope & Chain Kit; Backing Plate & Bolts; Guide Roller; Circuit Breaker; Up/Down Switch; Solenoid and User Manual. Optional Fast Fall System #53741 available separately. Winch Components: 316 Stainless Steel Motor, Drum and Gearbox. Model 1000Rope/Chain Total: 328′. Rope 305′ x 1/4″ + Chain 23′ x 1/4″
Individual Size
- Length: 18.5 (Inch)
- Width: 16.5 (Inch)
- Height: 12.5 (Inch)
- Weight: 67 (Pound)
- Amps: 60
- Capacity: 200 lbs.
- Chain Size: 1/4″ x 23′
- Description: Deluxe Series 1000
- Length: Boat: Up to 23′
- Line Size: 1/4″ x 312′
- Size: 14-7/8″ W x 14-5/8″ D x 9-7/8″ H
- Voltage: 12V
- Watts: 700
