BEP 80716003000 Smart Battery Hub, Twin Engine Model

Description

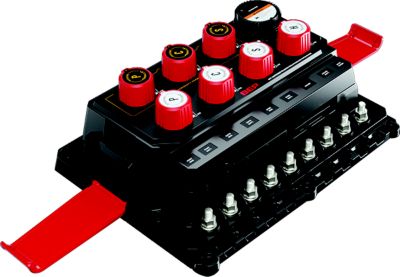

Smart Battery Hub is a complete all in one battery management system for vessels running 2 – 6 outboards. Simplifies battery management with remotely activated switches, automatic dual direction Voltage Sensitive Switching (VSS) and emergency parallel functionality, housed in a robust, easy-to-install, ignition-protected IPX7 enclosure.

Individual Size

• Length: 19.7 (Inch)
• Width: 14 (Inch)
• Height: 8.6 (Inch)
• Weight: 19.6 (Pound)

Additional Information

• Twin or Triple engine configurations
• Remotely operated switches via analog inputs or CZone®
• Configurable dual direction voltage sensitive switches
• Monitors and transmits all battery voltages, including house bank state of charge over NMEA2000 for integration with multi-function displays
• 2 x additional sensor inputs
• Full mechanical override of all switches for safety and servicing
• Parallel two units together for 4, 5 or 6 engine installations
• For 12 or 24 volt systems

• Description: Twin Engine
• Voltage: 12/24V
