Momentary Push Button Switch

Description

This momentary Push Button On/Off switch is constructed of corrosion resistant glass reinforced polyester housing with an elastomeric rubber internal gasket and ultrasonic welding for increased water resistance. Compact behind-dash panel dimensions allow for mounting in confined spaces. 2 Boss copper alloy screw terminal contacts. Overall length: 2-7/8”. Mounting stem: 1-7/16L x 5/8″-32 thread. Maximum panel thickness: 1-1/8″. 30A @ 12VDC. Includes rubber boot nut.

Individual Size

• Length: 5.81 (Inch)
• Width: 3.88 (Inch)
• Height: 1.25 (Inch)
• Weight: 0.07 (Pound)

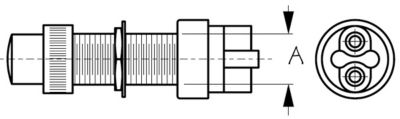

• A: 5/8″
• Panel: 1-1/8″ Max
• Positions: Mom On/Off
• Terminals: 2 Boss
