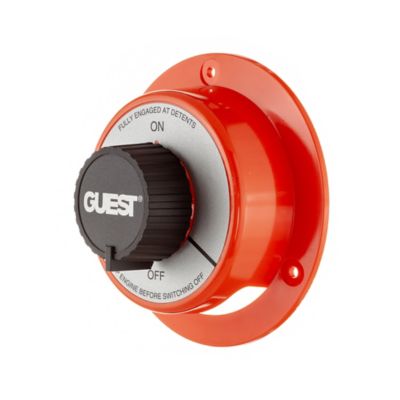

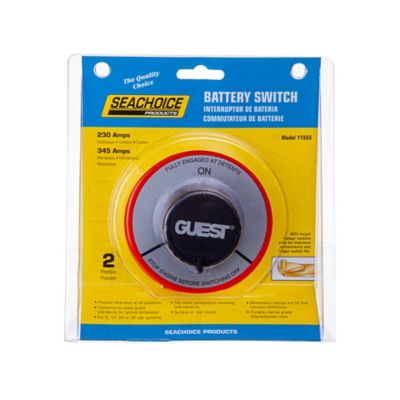

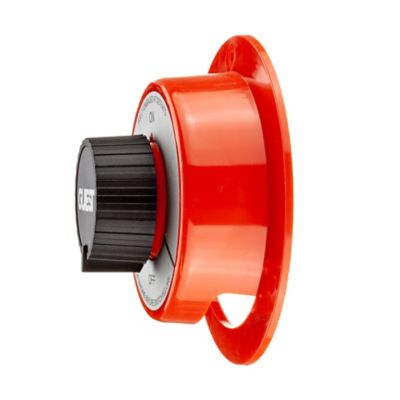

Seachoice 11553 2-Position Battery Select Switch w/o Lock

Description

BATT SWITCH 2POS W/O LOCK

Individual Size

• Length: 7.5 (Inch)
• Width: 7 (Inch)
• Height: 3 (Inch)
• Weight: 0.75 (Pound)

Additional Information

• For 6, 12, 24 or 36 volt systems
• 230 Amps continuous, 345 amps momentary (5 minutes)

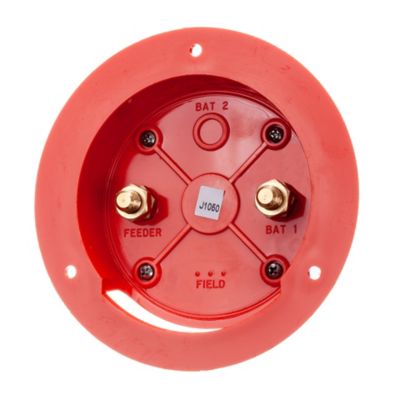

• Surface or rear mount
• Conforms to US Coast Guard standards for ignition protection
• Positive click-stop on all positions
• Durable marine-grade polycarbonate case
• 60% larger ‘sweep’ contact area for improved performance and longer switch life
• Dimensions: 5-1/2″ dia. x 2-5/8″, Cable Lug Size: 3/8″
• Fits most competitors mounting hole patterns

• Size: 5-1/2″ Dia. x 2-5/8″
