Description

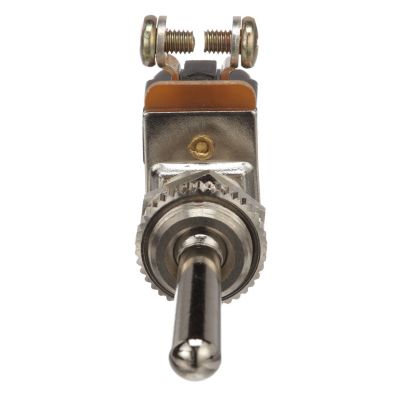

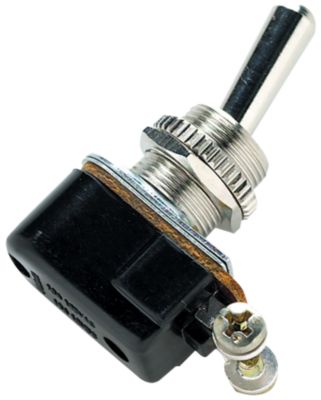

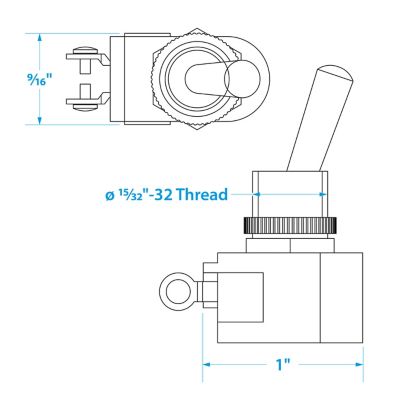

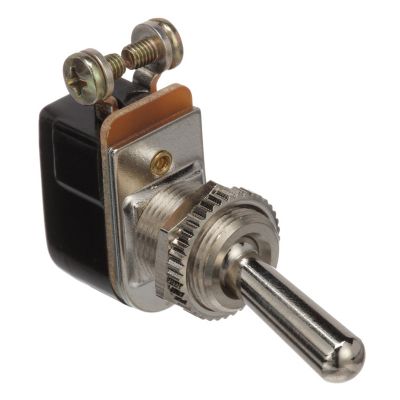

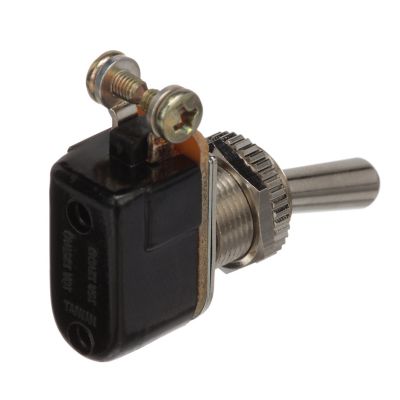

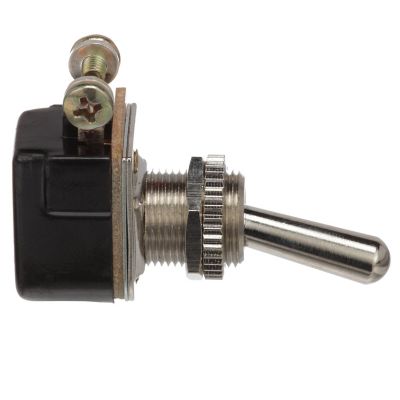

All toggle switches have a chrome plated brass handle, mounting stem and face nut. Mounting stems are 15/32″ L; 15/32″-32 thread diameter.
Individual Size
- Length: 5 (Inch)
- Width: 2 (Inch)
- Height: 1 (Inch)
- Weight: 0.25 (Pound)
- Max Panel: 1/4″
- Positions: 2 – Off/On (SPST)
- Rating: 10A @ 12V DC Lamp Load – 3A @ 250V AC – 6A @ 125V AC 15A @ 12V DC Inductive Load
- Terminals: 2 Screw
