Description

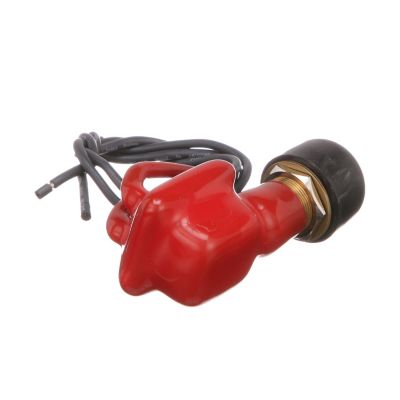

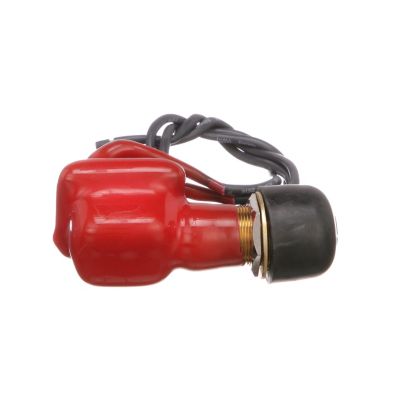

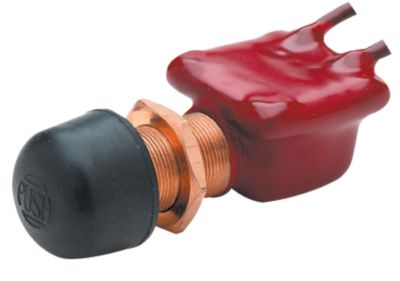

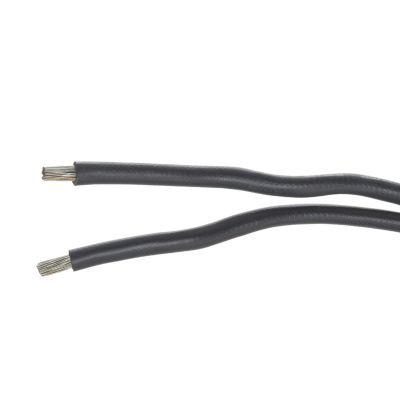

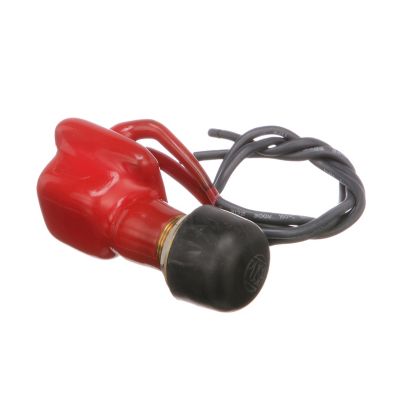

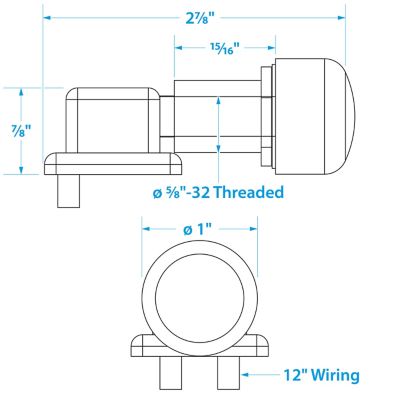

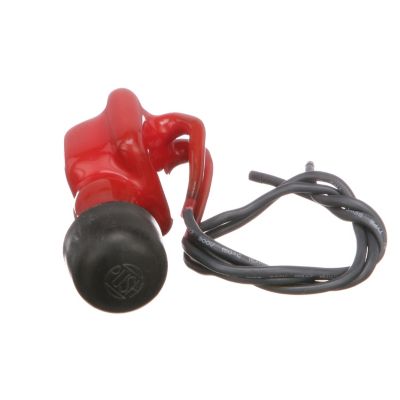

Heavy duty, 6V – 36V, 2 position momentary push button switch: Off – Momentary On. Normally “Off” S.P.S.T. Plasticized body is sealed against moisture & dirt and the black moisture repellent rubber button cover protects agains front water and dirt intrusion. Two 18 gauge wire leads, 12″ L. Mounting stem 15/16″ L, 5/8″ – 32 thread dia.
Individual Size
- Length: 6.75 (Inch)
- Width: 3.75 (Inch)
- Height: 1.5 (Inch)
- Weight: 0.2 (Pound)
- Amps: 10
- Max Panel: 1/2″
- Voltage: 12V
