Description

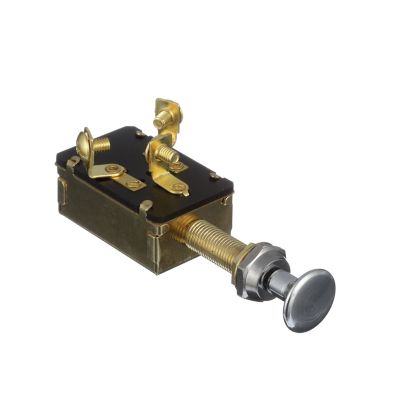

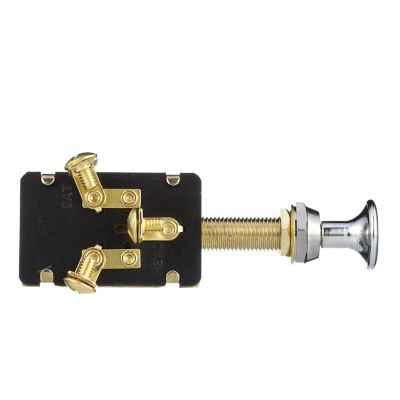

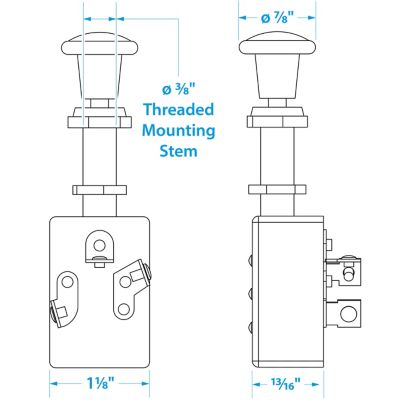

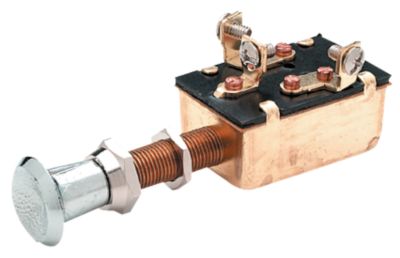

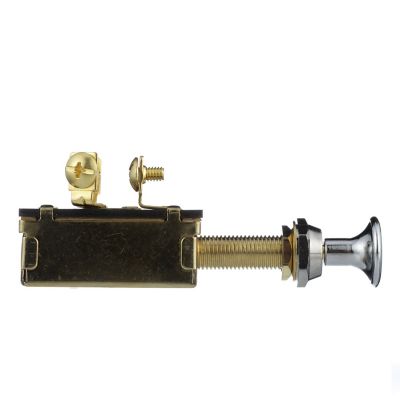

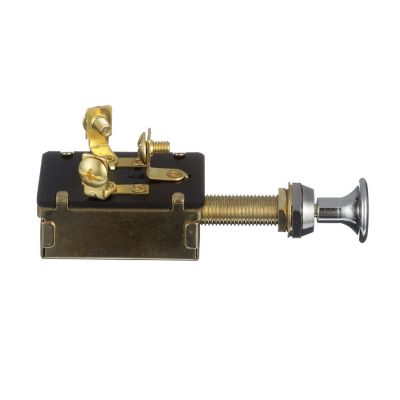

Heavy Duty. Mounting stem: 1-1/4″ L x 3/8″ dia. 3 Position: Off – On #1 – On On Both #1, #2. First “On” energizes one circuit. Second “On” energizes both circuits. Brass hex back-up nut, brass washer, chrome plated brass face nut. Chrome plated brass knob.
Individual Size
- Length: 6.5 (Inch)
- Width: 3.5 (Inch)
- Height: 1.5 (Inch)
- Weight: 0.25 (Pound)
- Circuit Count: 2
- Max Panel: 1″
- Positions: Off – On -On Both #1, #2
- Rating: 25A @ 6VDC – 15A @ 12VDC
