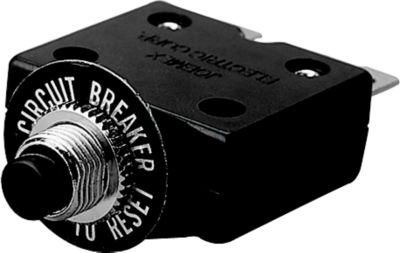

Seadog 4208301 Thermal Breaker 30 Amp

Description

Thermal AC/DC Circuit Breakers are constructed of molded Bakelite with stamped brass contacts. Used to protect an electrical circuit from damage caused by excess current. These push-to-reset circuit breakers are an economical alternative to magnetic breakers. Quick connect terminal style breakers are vibration and shock resistant. An alternative to fuses; they have the advantage of being resettable after tripping. Panel mounted compact design. Optional Thermal Breaker Boot (420839) provides additional protection in wet environments. 4-35A @ 125-250VAC. 32VDC.

Individual Size

• Length: 5.81 (Inch)
• Width: 3.88 (Inch)
• Height: 1.25 (Inch)
• Weight: 0.084 (Pound)

• A: 1-3/8″
• Amps: 30
• B: 7/16″
• C: 1-1/4″
• D: 9/16″
