Description

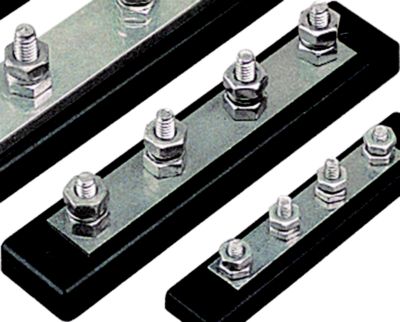

These Buss Bar Stud Terminal Blocks are primarily used to route and connect power or ground circuits. The raised bus provides easy access on a single stud, making it useful for consolidating multiple wires or feeding multiple circuits. Constructed of tin plated brass and ABS. Maximum: 48VDC. Installs with #10 RH fasteners (not included).
Individual Size
- Length: 8 (Inch)
- Width: 4 (Inch)
- Height: 1.5 (Inch)
- Weight: 0.33 (Pound)
- A: 6″
- Amps: 150 A
- B: 1-1/4″
- C: 1-3/8″
- D: 5-3/16″
- E: –
- Terminals: 4 x 1/4″-20
