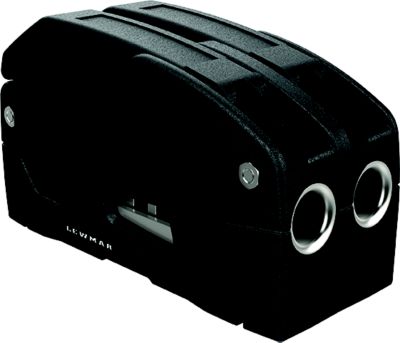

Lewmar 29101212BK DC1 Low Load Rope Clutch, Double, 3/8″ – 7/16″

Description

Variable geometry handle and unique grip pattern of dominoes that prevent rope fray. Unlike anything else on the market, Lewmar’s non-cam clutch has a series of smooth, in-line and parallel rings hinged at the base. The line is run through these rings which are then tilted by a single connecting lever. When tilted, the rings force the line to snake through them, creating the necessary friction to hold the line securely.

Individual Size

• Length: 0 (Inch)
• Width: 0 (Inch)
• Height: 0 (Inch)
• Weight: 0 (Pound)

Additional Information

• Domino Cluster and greater surface area holds line under load without fraying
• Controlled Release – Pull back handle combined with patented clutch and release mechanism provides controlled release even at full holding load.
• Solid link from handle to Domino Cluster
• Line size capability from 6mm (1/4 inch) to 14mm (9/16 inch)

• Description: DC1 Double
• Line Size Range: 3/8″ – 7/16″
• Working Load Limit: 1100 lbs.
