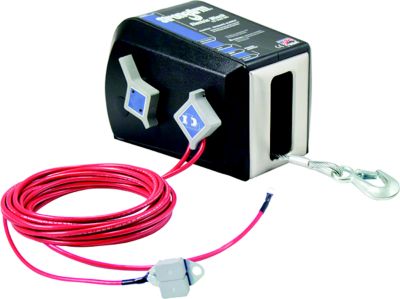

Electric Winch

Description

The D-L StrongArm® Electric Winch gear train uses heat-treated sintered-iron gears forsmooth, quiet operation. The final drive gears are heat-treated high carbon steel formaximum strength. Precision needle bearings are used in the high-load areas for lowfriction and long life. The one piece die formed base is made of heavy gauge steel.The stainless steel front frame protects the cable or strap from abrasion.

Individual Size

• Length: 12.25 (Inch)
• Width: 10.75 (Inch)
• Height: 10.25 (Inch)
• Weight: 35.5 (Pound)

Additional Information

• Available in 120V AC or high torque 12V DC
• 12V switch includes wiring harness, 25′ positive battery wire and 8′ ground wire
• High impact case provides excellent weather resistance and protection
• Attractive brushed stainless steel front plate for superior rust resistance
• Die formed base is adapted for quick mounting applications
• Cable hook safety snap keeps load securely attached
• Standard equipment includes an emergency crank handle

• Amps: 70
• Description: 7/32″ x 50′ Cable
• Maximum Load: 4500 lbs.
• Voltage: 12
