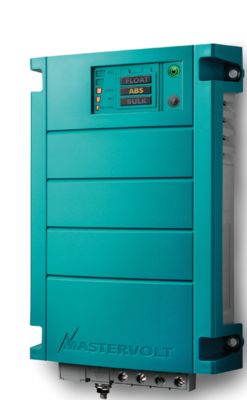

Chargemaster – 12V 25A

Description

3-step+ charging method guarantees optimum efficiency, meaning your batteries will perform better and last much longer. Its direct current output is so clean that the battery charger itself can be used as a voltage converter to power things directly. Works with any voltage, with universal input for worldwide use. Plug & play battery charger is MasterBus compatible and can be easily connected to a MasterBus network with only one cable and one connection. Auto Ranging voltage capability allows the chargers to operate worldwide from virtually any power source from 90-265VAC 50 or 60 Hz.44010250: Includes 6.5 feet of cable pre-assembled to the inlet and LED display.

Individual Size

• Length: ()
• Width: ()
• Height: ()
• Weight: ()

• Amps: 25
• Absorption Time: 4 hour
• Banks: 3
• Charge Characteristic: IUoUo, automatic 3-stage + for Gel / AGM / wet / Lithium Ion
• Charge Current Second Output: 25
• Charge Current third Output: 25
• Charge Voltage Bulk/Absorption/Float: 14.25
• Charge Voltage Float (Gel/AGM batteries): 13.8
• Charge Voltage Float (wet batteries): 13.25
• Charging Voltage (Select Profile): 25
• Cooling System: vario fan
• Current Control function: no
• Delay Lower Input Set Point: automatically
• Display Type: LED display
• Full Load Consumption: 450
• Galvanic Isolation: yes
• Master Bus Compatible: yes
• Mounting: 4x screw
• Nominal Input Voltage: 120/230 V (90-265 V), 50/60 Hz
• Nominal Output Voltage: 12
• Number of Battery Outlets: 3
• Options: OEM version with WAGO 770-113 plug and 25 cm cable, item no. 44010252
• Overall Dimensions: 234 x 132 x 60
• Power Consumption: <2 mA
• Power Factor Control: 0.98
• Power Supply Mode: yes
• Protection Degree: IP23
• Protections: over temperature, overload, short circuit, high / low battery voltage
• Recommended Battery Capacity: 50-250
• Size: 9.2″ H x 5.2″ W x 2.4″ D
• Temperature Compensation: yes
• Temperature Range (Ambient Temp.): -25 °C until 60 °C, afnemend < 0 °C en > 40
• Total Charge Current: 25 A at 13.25 V
• Voltage: 12
• Weight: 1.8
