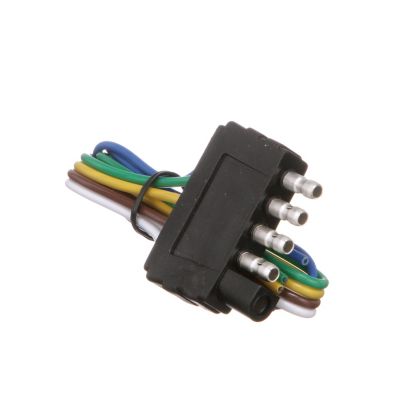

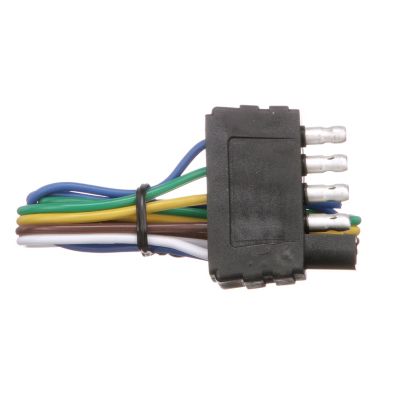

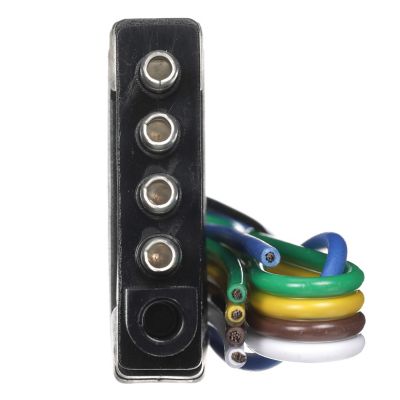

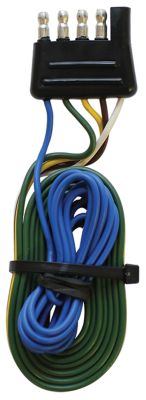

Seachoice RV 5-Way Flat Connector, 12″

Description

Industry standard connector used for light-duty applications where an auxiliary circuit is required for surge brake lockout or back-up lamp functionality.

Individual Size

• Length: 4 (Inch)
• Width: 3.5 (Inch)
• Height: 2.25 (Inch)
• Weight: 0.25 (Pound)

Additional Information

• 16 Ga. Bonded Wire (Green, Yellow, Brown, White)
• 16 Ga. Single Wire (Blue)
• Tin Plated .187 Terminals for Improved Current Capacity and Corrosion Resistance
• Flexible Molded PVC Connectors
• 7.5 Amp Max Load

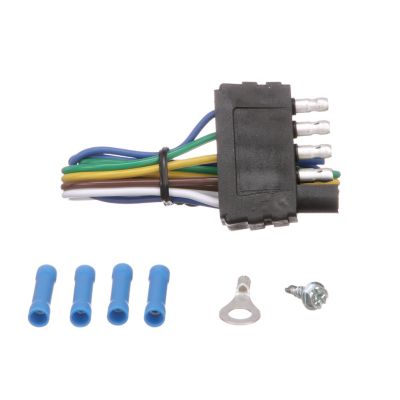

• Contains: Harness, Connector, Detailed Wiring Instructions

• Amps: 10
• Connection Type: Trailer
• Length: 12″
• Voltage: 12/24V
