Description

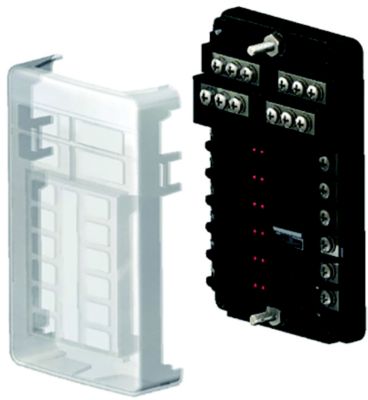

BLADE STYLE FUSE BLOCK WITH NE
Individual Size
- Length: 4.75 (Inch)
- Width: 1.5 (Inch)
- Height: 8.25 (Inch)
- Weight: 0.53 (Pound)
Additional Information
- Red LED lights indicate when fuse is blown or missing
- Uses ATO/ATC & ATM fuses 1A-30A
- Main line terminal rating is 100A 32VDC max, with M5 metric threaded studs
- Single line terminal rating is 30A 32VD, with M4 metric threaded studs
- Terminals are nickel plated copper with stainless steel screws
- Includes fuse block cover and 71 labels
- Installs with four #8 FH fasteners (not included)
- A: 5-1/2″
- B: 3-3/8″
- C: 1-7/16″
- Terminals: 12
