Description

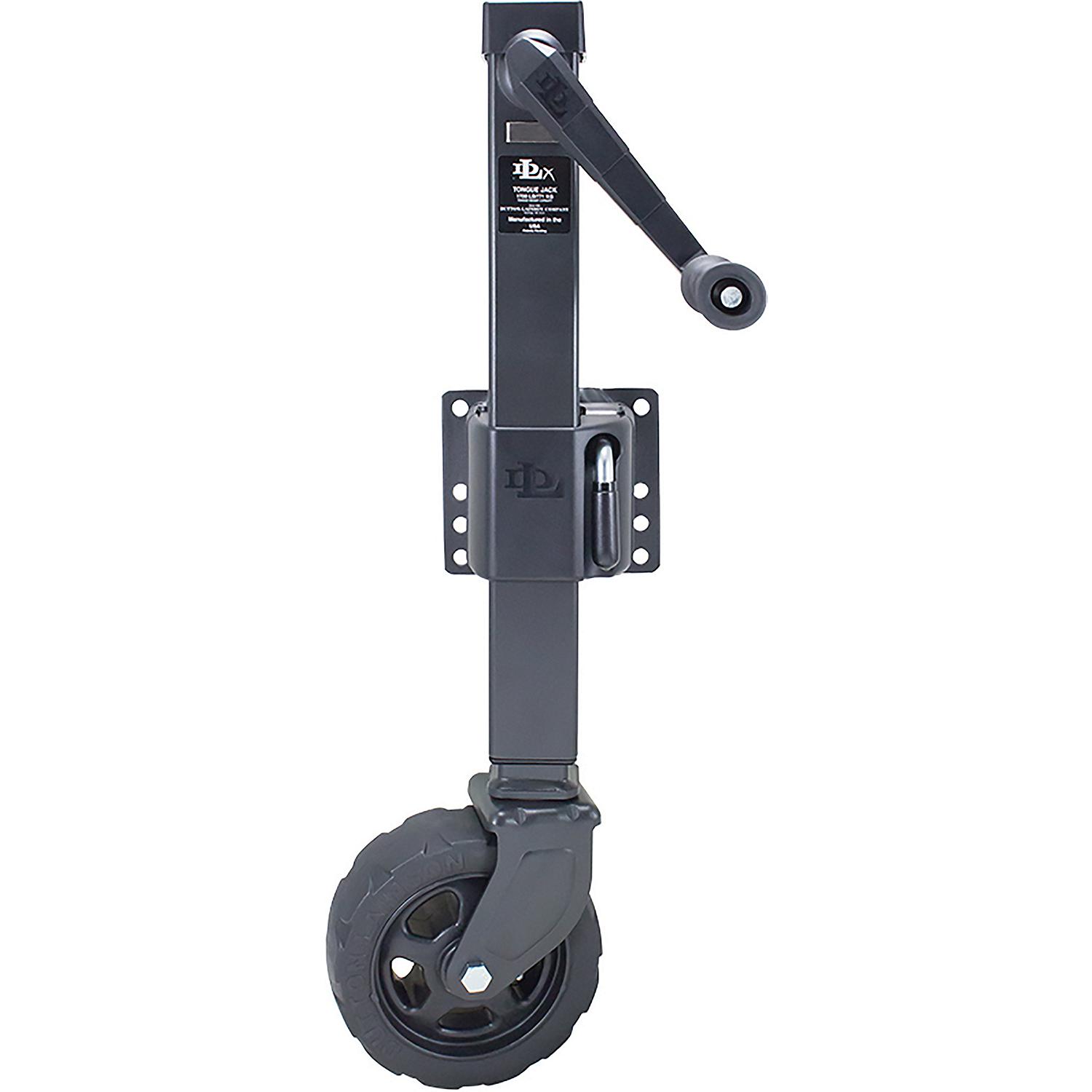

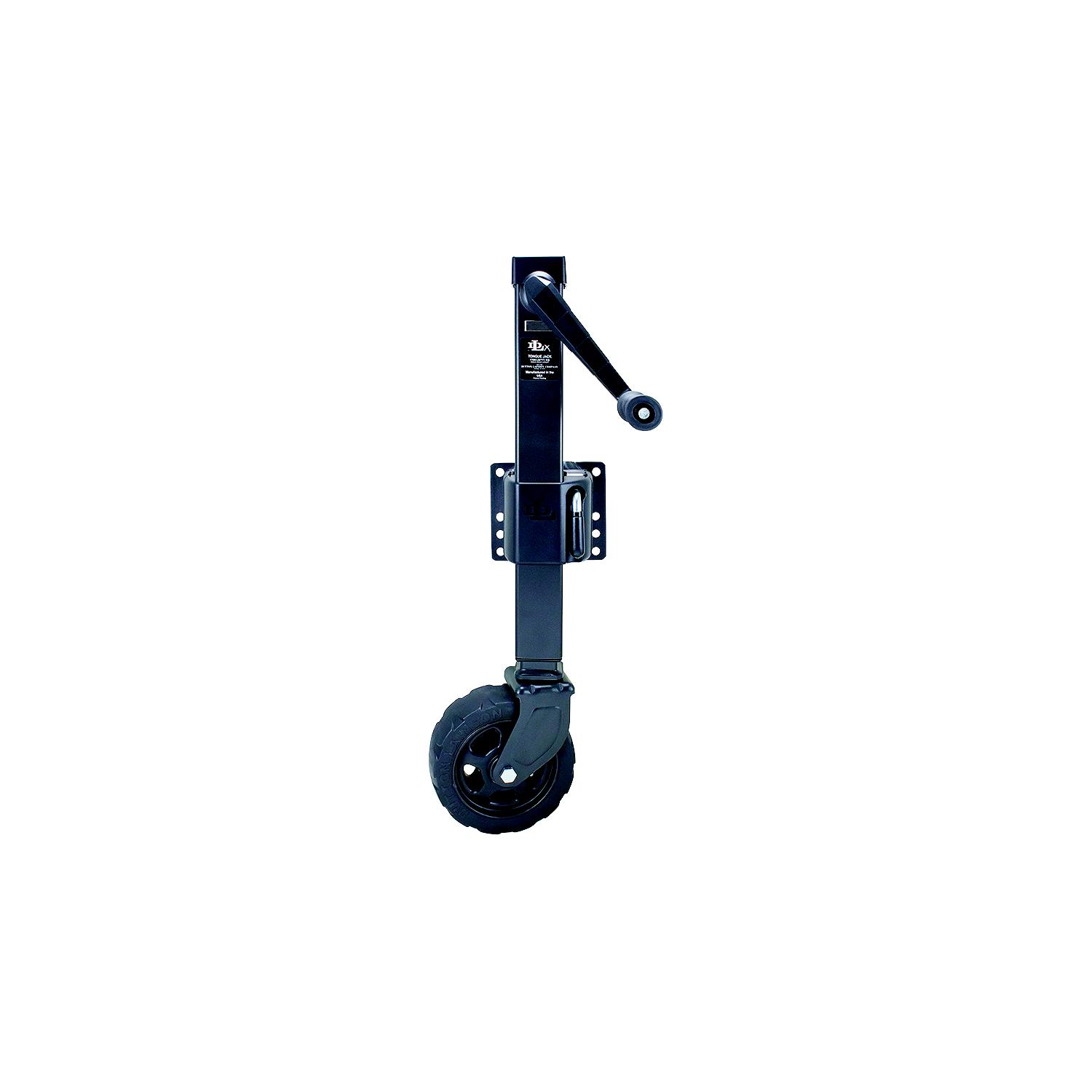

DLX SW JACK BOLT ON SP
Individual Size
- Length: 30.25 (Inch)
- Width: 11 (Inch)
- Height: 7.25 (Inch)
- Weight: 35.58 (Pound)
Additional Information
- Side wind handle with extra heavy screw drive and ergonomic handle grip
- Easily swivels up for towing or down for stowing and locks in place in either position
- Independent wheel (wheel bracket rotates independent from inner post) for maximum surface area and maneuverability over rough terrain like sand or gravel
- Reinforced wheel bracket for additional strength
- Fits square tongues up to 3″ x 5″
- Includes all necessary bolt-on mounting hardware
- Inner tube, outer tube, wheel bracket, and mounting plate have powder coated matte black finish over zinc plating
- Vinyl sleeve on 1/2″ swivel pin makes swiveling more comfortable
- Bushing between tubes prevents scratching and tightens fit
- Premium cushioned handle grip is softer and more comfortable
- Unique top cap mounts over outer tube and is held in place with a screw
- Premium handle cover
- Unique swivel bracket cover protects swivel parts, enhances look, and allows pin to rotate 90 degrees and then back into a recessed storage position
- Drainage holes near bottom of inner post
- Height: 29-1/2″
- Maximum Load: 1,700 lbs.
- Travel: 12″
- Wheel: 8″ dia. (3″ wide)
